Chute Civil Engineering provides commercial and residential land surveys and civil engineering drawings across Ireland — from single-site topographical surveys to full utility and sightline surveys for planning applications.
Every survey is issued as a fully dimensioned drawing set, ready for planning submission, design coordination or site setting-out.
Detailed ground-level survey of a site — levels, boundaries, buildings, trees, fences and existing structures — as the base drawing for any design.
Mapping of underground and overhead services — ducting, cabling, drainage and plant — for substations, compounds and industrial sites.
Vehicle sightline and stopping-sight-distance surveys for new and existing entrances, prepared to support road safety audits and planning conditions.
Site layout, drainage, road and compound drawings produced from survey data, for commercial, industrial and residential projects.
A selection of sample surveys showing the drawing standard every project is delivered to. Click any drawing to view it in full.

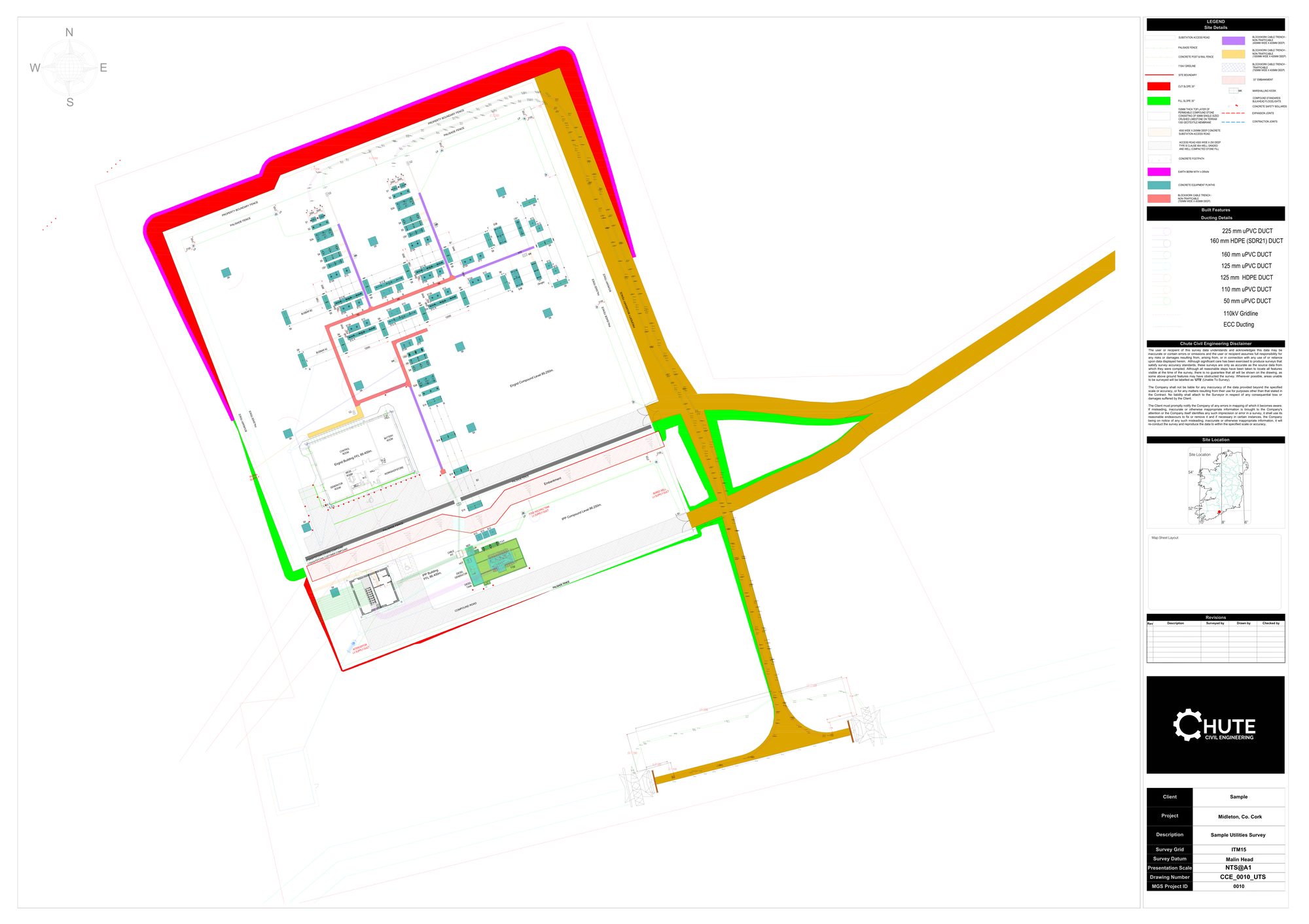

Full underground and above-ground service survey of a 110kV substation compound — ducting, cable trenches, plinths and site boundary, presented to ITM95 grid.

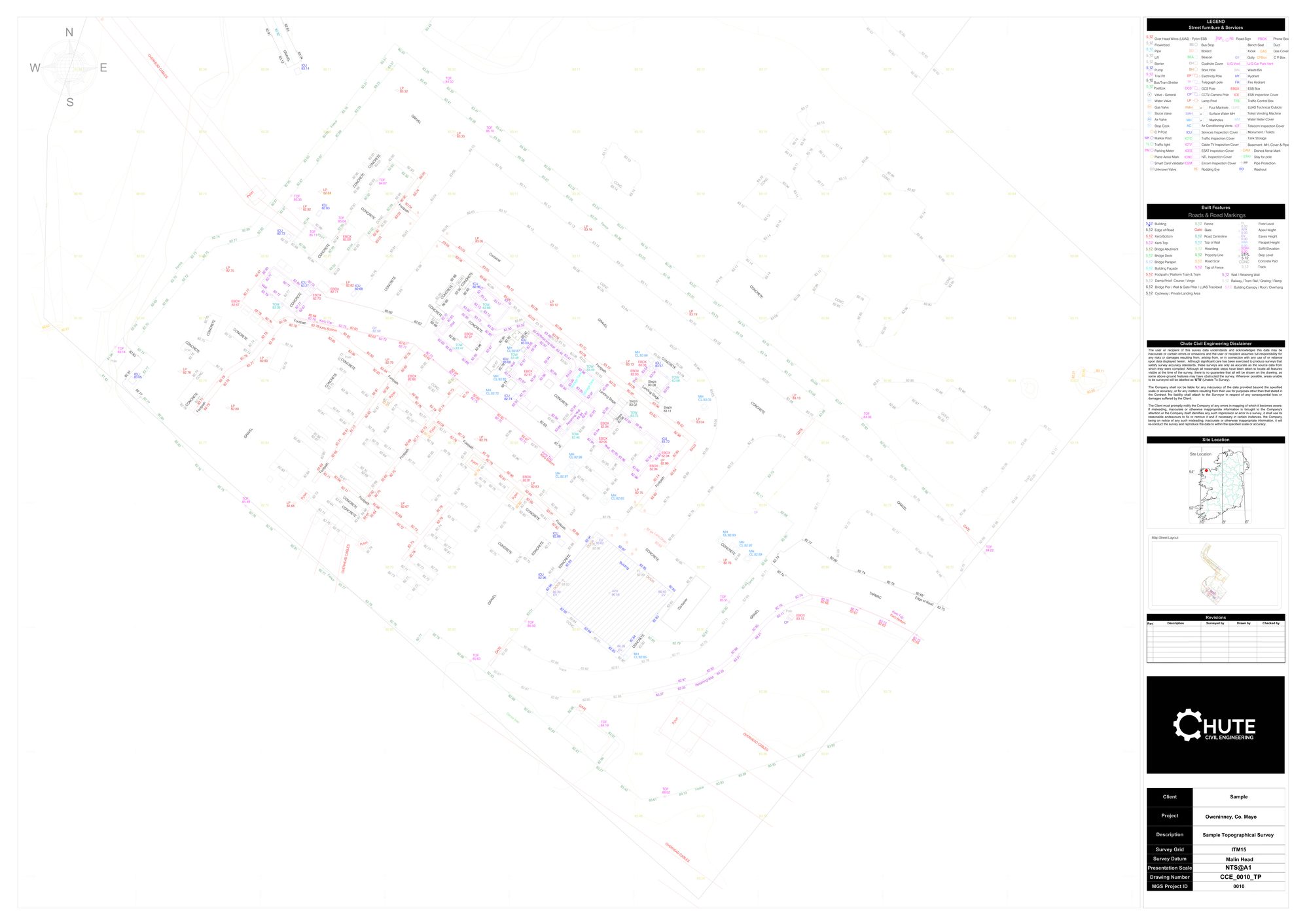

Wide-area topographical survey covering buildings, roads, boundaries, street furniture and full ground-level data across a large industrial site.

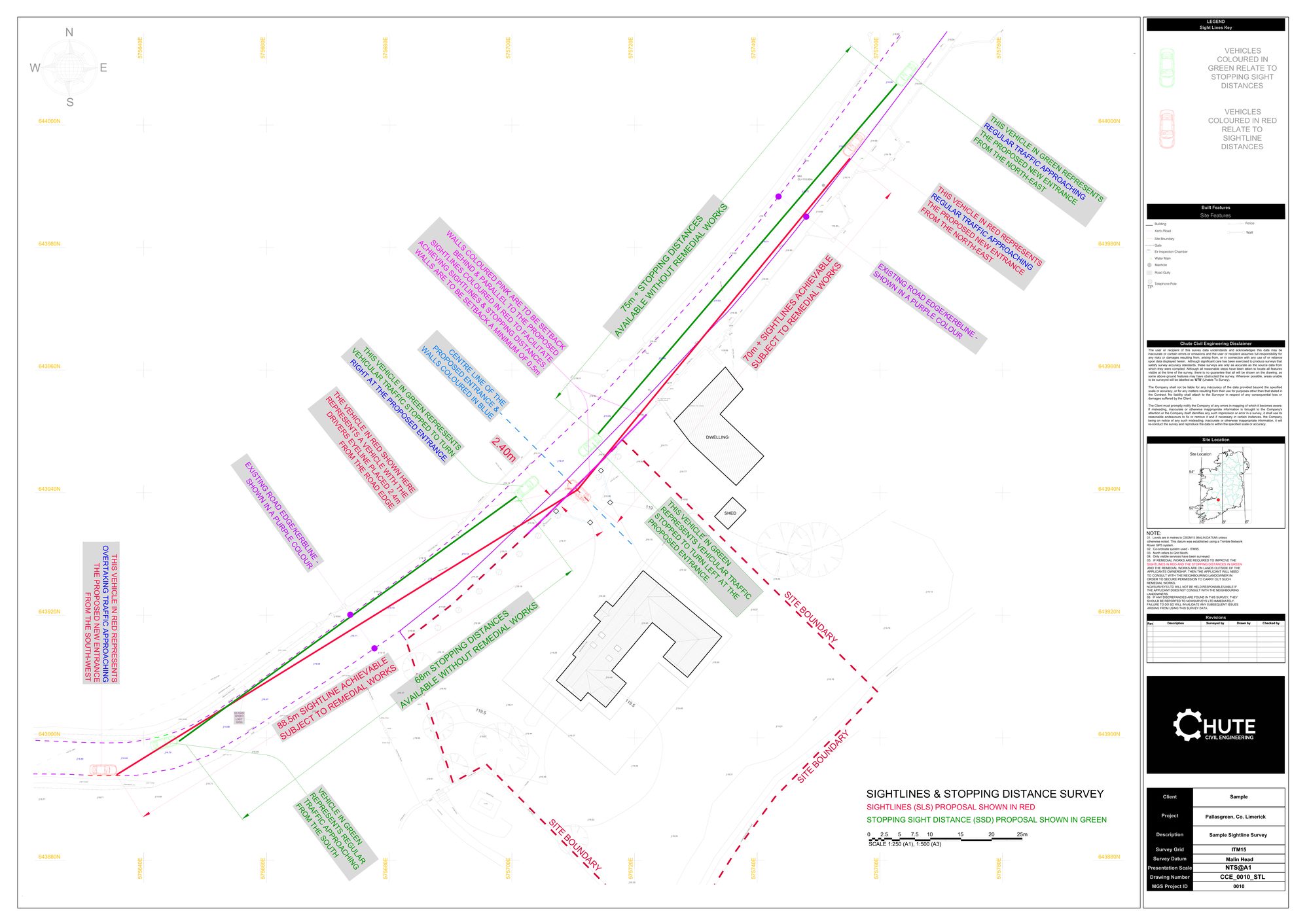

Vehicle sightline and stopping sight distance assessment for a proposed entrance, showing achievable distances and remedial works required.
Ground data captured on site using GPS network rover equipment, referenced to ITM95 grid and OSGM15 (Malin Head) datum.
Survey data is checked, cleaned and processed — levels, features and services cross-referenced against what was captured on site.
Drawings are produced to scale with full legend, title block and site location plan, ready for design or planning use.
Final drawings issued in your required format, with revisions and queries supported after handover.
An Ireland-based civil engineering and surveying practice, providing land surveys and civil drawings for commercial and residential clients — from single-house sites to full industrial compounds.
Run by Paul Chute, Chute Civil Engineering carries out land and utility surveys, and produces the civil engineering drawings that follow from them.
Work covers commercial and residential projects across Ireland, including utility surveys for substation and industrial compounds, topographical surveys for site design, and sightline and stopping distance surveys for planning applications.
Every survey is captured to a consistent national standard — ITM95 grid, OSGM15 (Malin Head) datum — and issued as a scaled, dimensioned drawing set.
Send over the site address and what you need surveyed — a topographical survey, utility survey, sightline survey, or a set of civil drawings — and Paul will come back with a quote.
